Basic Info.
Model NO.
RDB5-63 C63 1p 2p 3p 4p
Arc-extinguishing Medium
Air
Installation
Fixed
Structure
MCB
Poles Number
1
Type
Circuit Breaker
Function
Conventional Circuit Breaker
Certification
ISO9001-2000, CE, CB, CCC
Customizability
Support for Custom
Equipped with Short-Circuit Protection
Yes
Equipped with Overload Protection
Yes
Any Accessories That Can Be Paired with
Yes
Operating Ambient Temperature
-35ºC~+70ºC
Altitude
Not Exceeding 2000m
Pollution Degree
Class 2
Main Circuit Installation Category
2 and 3
DIN-Rail Mounting
Th35-7.5
Circuit Breaker Width
18mm
Transport Package
Export Packaging
Specification
Carton
Trademark
PEOPLE
Origin
China
HS Code
8536200000
Production Capacity
200000PCS/Month
Packaging & Delivery
Package Size
35.00cm * 25.00cm * 20.00cm
Package Gross Weight
1.200kg
Product Description
LEADING SERIES-RDB5 miniature circuit breaker

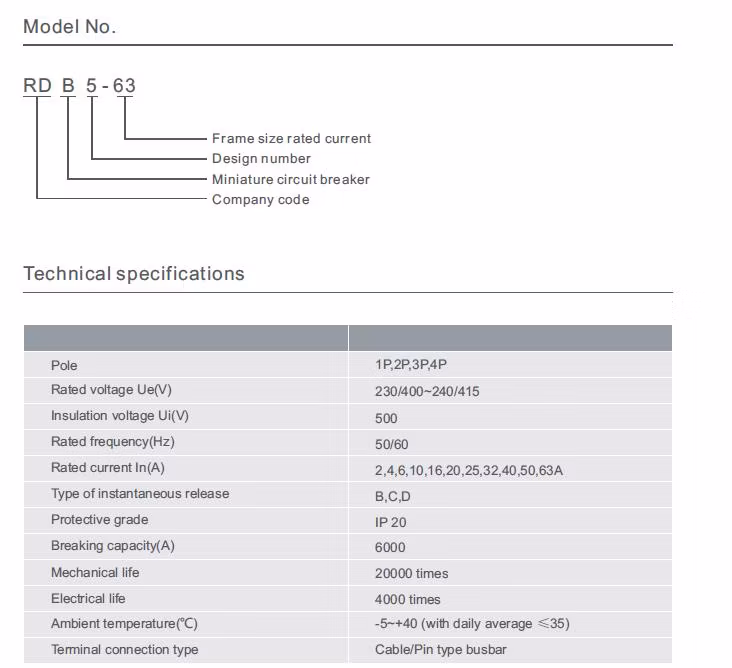

| Description | Parameters |
| Products are consistent with the standard: | IEC60898-1 |
| Rated current (A): | 6,10,16,20,25,32,40,50,63A |
| Rated operational voltage (V) | 230/400VAC |
| Rated frequency (Hz) | 50Hz |
| Instantaneous release | C, D |
| Short-circuit operation capacity lcs (A) | 6000A |
| Number of poles | 1P, 2P, 3P, 4P |
| Mechanical life | 20000 times |
| Electrical life: | 10000 times |
Application
RDB5 miniature circuit breaker is applicable to a circuit of AC50/60Hz, 230V (single phase)400V(2,3, 4 phases), for overload and short circuit protection.
Rated current up to 63A. It also can be used as a switch for an infrequent conversion line.
It is mainly used in domestic installation, as well as in commercial and industrial electrical distribution systems.
It conforms with the standard of IEC/EN60898-1.
New LEADING series design element
Artistic, natural and fashion
Artistic, natural and fashion
Visual window information,
Clear and more visual.
Gray handle, classic inheritance
· Power consumption is far below the national standard requirement
· High quality, withstand analysis
· Perfect appearance, feast for the eyes

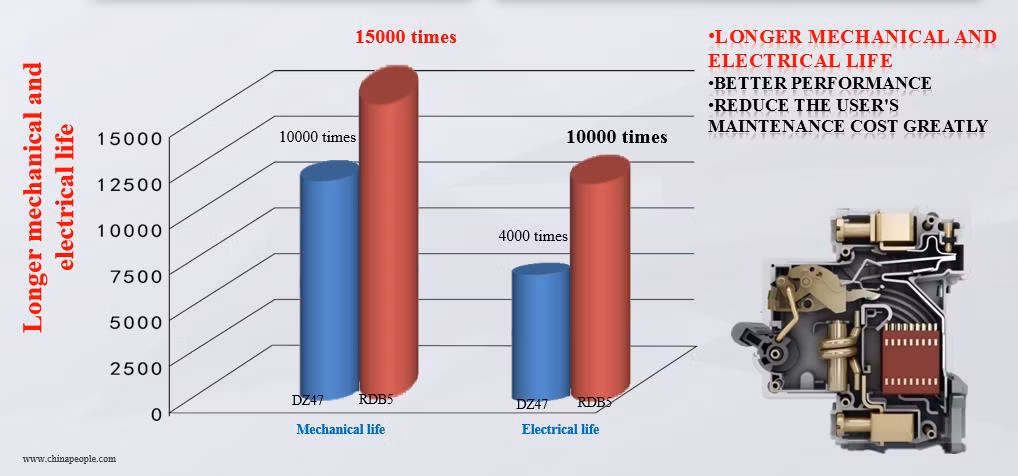

· Longer mechanical and electrical life and better performance, greatly reducing maintenance costs for users
FAQ
Q: If I am interested in your MCB, when can I receive your quotation and details after sending the enquiry?
A: All your inquiries will be answered within 8 hours.
Q: Can I get samples before placing an order? Because I really don't know if your company's products are of good quality or not.
A: Certainly! We also believe that sample orders are the best way to prove quality. Welcome to inquire about the products you want
Q: What are your terms of trade?
A: We accept exw, fob, cif, fca, etc.
Q: How long is the delivery time?
A: Sample order usually takes 3-5 working days, formal order usually takes 10-20 days.
Q: how to solve the quality problems after sales?
A: Take photos of the quality problems and send to us for our checking and confirming,we'll make a satisfied solution for you whin 3 days
